Radios & Signal Processors

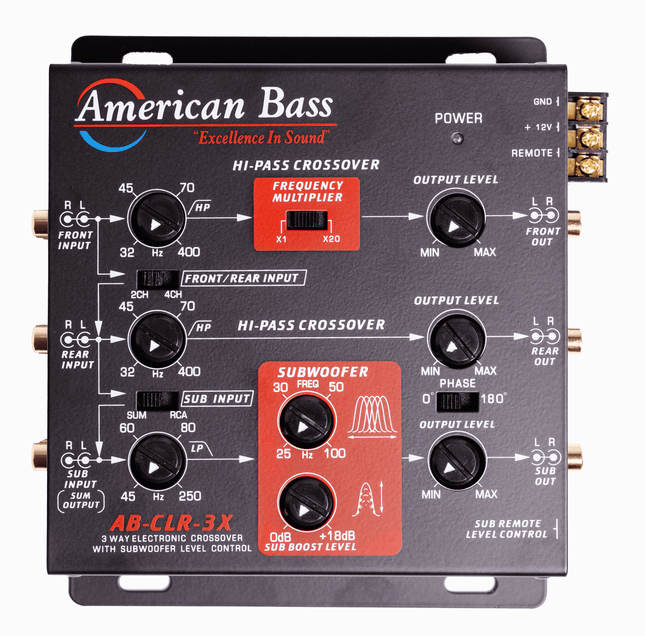

Description Specifications The AB-CLR-3X is a high-performance 3-way active crossover engineered for serious car audio systems. It provides independent crossover adjustment for front, rear, and subwoofer channels, allowing precise control over frequency separation, phase alignment, and output levels. With its remote subwoofer level control and clean signal path, this unit is ideal for advanced multi-amp and competition-level sound systems. Power Source 14.4 volts DC (negative ground) Input Current  0.5 A max Distortion (THD) 0.01% at 1V Frequency Response 10 Hz – 30 kHz (–3dB) Signal-to-Noise Ratio >100 dB Channel Separation 60 dB Crossover Slope 18 dB/octave, 3rd order Butterworth Input Impedance 20 kΩ  Output Impedance 100 Ω Output Gain 1:2 (+6 dB)  Output Voltage Level 5 V max Dimension  152mm x 180mm x 43mm Support Specification Sheet (PDF)

Read more less

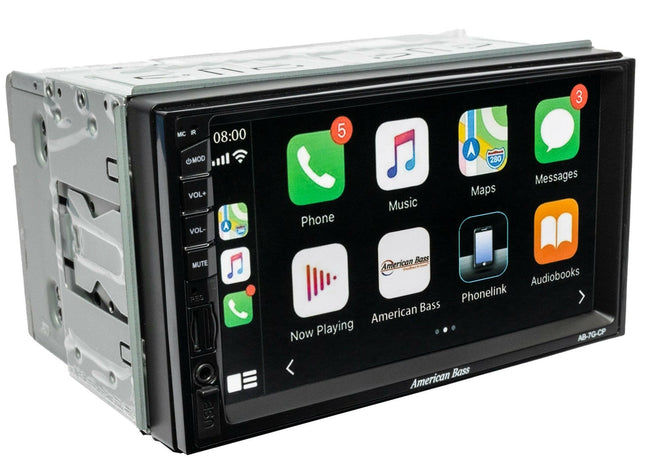

Description Upgrade your driving experience with the American Bass AB-7G-CP Radio, a perfect replacement for your factory-installed radio. This cutting-edge system elevates in-car entertainment and convenience by seamlessly integrating with your smartphone and offering an intuitive user interface. Experience a significant boost in audio quality and enjoy a safer, more enjoyable ride with advanced features tailored to meet your needs. Features: 7-inch capacitive touchscreen MP5 player Carplay and Android Auto compatibility 800x480 high-definition A-grade EWV LCD Rearview camera input support USB charging function for mobile devices Subwoofer output for an immersive audio experience Bluetooth A2DP wireless hands-free calling 3.5m external microphone for crystal-clear calls Built-in Aux input, SD/MMC slot, and USB interface 4732 Radio IC, TDA7388 amplifier Supports various media formats: RMVB, RM, FLV, 3GP, MPEG, DIVX, XVID, DAT, AVI, MP4, MP3, WMA, WAV 18 FM and 12 AM channels Multiple preset EQ options: Jazz, Rock, Pop, Classic 16-band DSP for enhanced audio control 50W x 4 power output Mirrorlink support for Android and iPhone Wireless luxury remote control included

Read more less

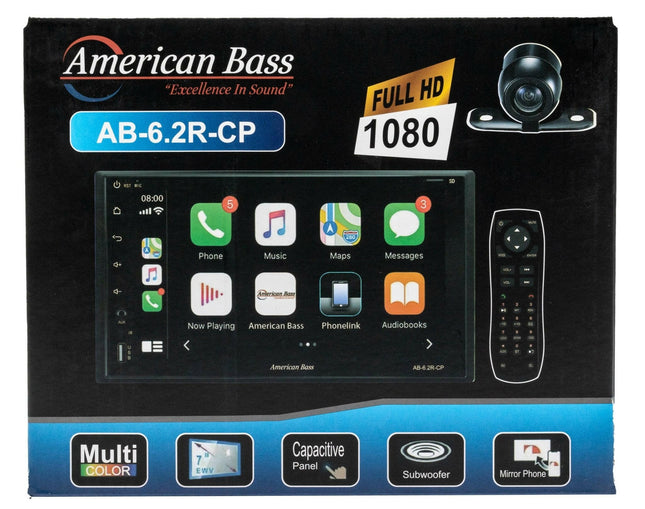

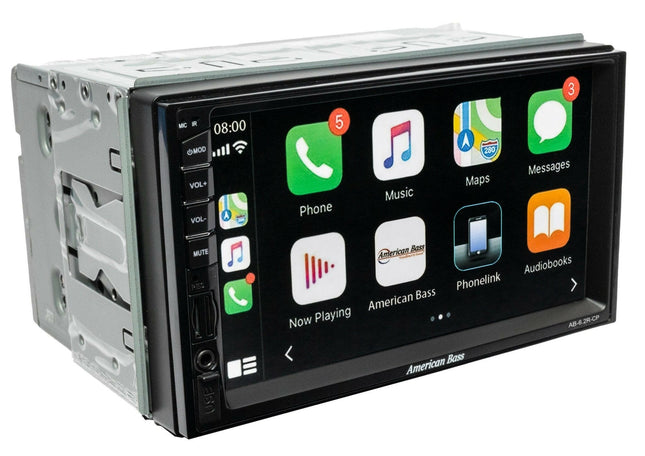

Description American Bass Car Play Radio 6.2R SKU: AB-6.2R-CARPLAY Upgrade your driving experience with the American Bass AB-6.2R-CP Radio, a perfect replacement for your factory-installed radio. This cutting-edge system elevates in-car entertainment and convenience by seamlessly integrating with your smartphone and offering an intuitive user interface. Experience a significant boost in audio quality and enjoy a safer, more enjoyable ride with advanced features tailored to meet your needs. Car Play Radio 6.2R Features: 6.2-inch capacitive touchscreen MP5 player Car Play and Android Auto compatibility 800x480 high-definition A-grade EWV LCD Rearview camera input support USB charging function for mobile devices Subwoofer output for immersive audio Bluetooth A2DP wireless hands-free calling 3.5m external microphone for crystal-clear calls Built-in Aux input, SD/MMC slot, and USB interface 4732 Radio IC, TDA7388 amplifier Supports various media formats: RMVB, RM, FLV, 3GP, MPEG, DIVX, XVID, DAT, AVI, MP4, MP3, WMA, WAV 18 FM and 12 AM channels Multiple preset EQ options: Jazz, Rock, Pop, Classic 16-band DSP for enhanced audio control 50W x 4 power output Mirrorlink support for Android and iPhone Wireless luxury remote control included

Read more less

Description Specifications AB-3X Crossover High-Precision Audio Divider SKU: AB-3X Introducing the AB-3X Crossover from American Bass – the essential tool for delivering unmatched audio clarity and precision. Tailored for the discerning audiophile, this crossover effortlessly divides your music into distinct frequency bands, ensuring that each speaker in your system plays the frequencies for which it's best suited. By doing so, it creates a harmonious blend of highs, mids, and lows, resulting in a richer and more immersive listening experience. With its sleek design and cutting-edge technology, the ABX 3.1A Crossover stands as a testament to American Bass's commitment to superior sound quality and innovation.  FRONT HIGH PASS (x1) 35Hz-400Hz (x20) 700Hz-8KHz REAR HIGH PASS 35Hz-400Hz SUBWOOFER LOW PASS/FREQUENCY 45Hz-250Hz (-18dB/OCT) OUTPUTS LEVEL 8V PEAK FREQUENCY RESPONSE 10-50KHz(-3dB) S/N RATIO 110dB THD 0.01% INPUT IMPEDANCE 20K OHMS OUTPUT IMPEDANCE LESS THAN 150 OHMS CHANNEL SEPARATION MORE THAN 70dB VARIABLE SUBSONIC FILTER ON/OFF WITH -18dB/OCT. AT 40 Hz LOW PASS/HIGHPASS -18BD/OCT POWER SOURCE 11-15 VOLTS DC NEGATIVE GROUND MAX OUTPUT VOLTAGE - PRE GRAPHIC FREQUENCY - EQUALIZATION RANGE -

Read more less

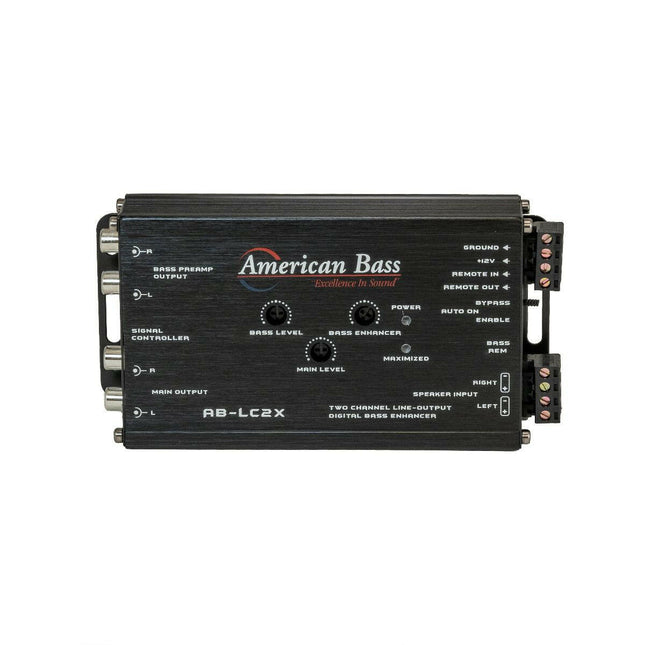

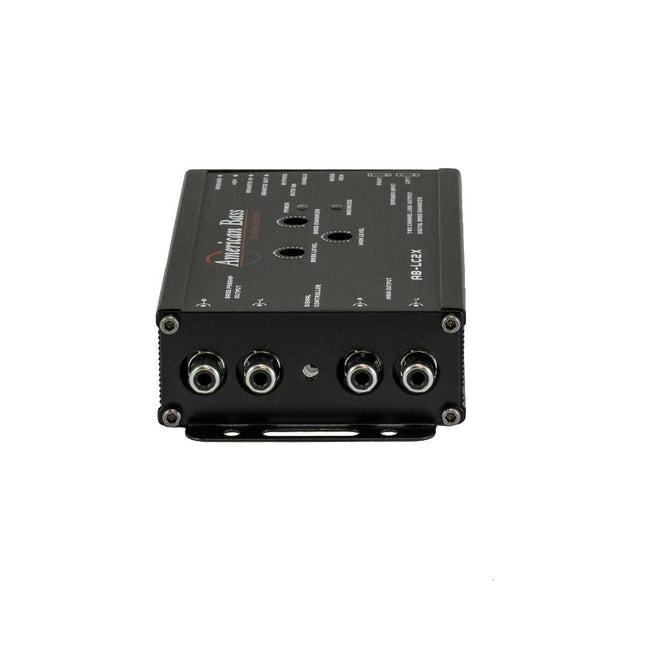

Description Specifications Signal Processor Digital Bass Enhancer SKU: AB-LC2X Upgrade your car audio experience with the American Bass AB-LC2X 2 Channel Line-Output Digital Bass Enhancer. This versatile device fine-tunes your audio system by optimizing equalization, managing crossovers, aligning sound waves with time alignment, correcting phase issues, and providing seamless integration with factory-installed systems. Enhance your bass output and enjoy precise volume control and level matching across all components. Features: Speaker Level Input Accepts Up to 500 Watts RMS Bass Enhancer Bass Compensation  Selectable Audio ON 9.5 Volt Pre-out 12 Volt Trigger Out Dual Amplifier Outputs Level Matching Controls Dash Remote Level Control MAXIMUM SPEAKER LEVEL INPUT 400 WATTS PER CHANNEL@ 4OHMS MAXIMUM SPEAKER LEVEL INPUT 9.5V RMS/12V DASH LEVEL CONTROL REMOTE +0/-19dB FREQUENCE RESPONSE 10Hz-100kHz;+1dB TOTAL HARMONIC DISTORTION 0.01% SIGNAL TO NOISE RATIO >11dB INPUT IMPEDANCE 20OHMS OUTPUT IMPEDANCE 150OHMS POWER DRAW 150mA RECOMMENDED FUSE RATING 1 AMP Support Specification Sheet (PDF)

Read more less

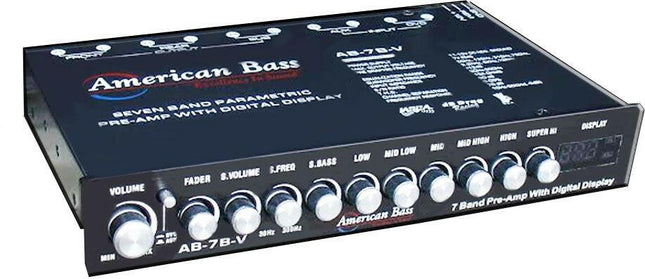

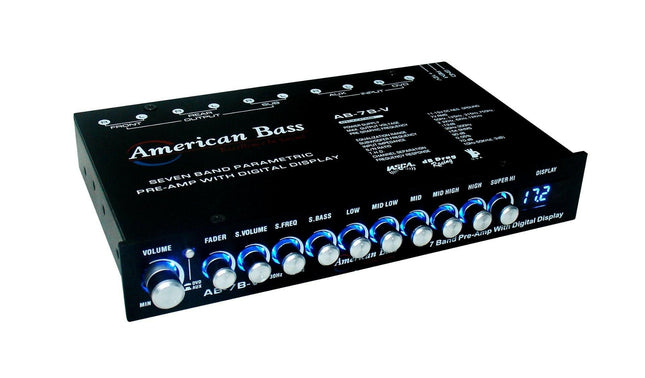

Description Specifications American Bass Car Equalizer SKU: AB-V7B Introducing the American Bass AB-7BV Equalizer – a pinnacle of sound management for the true audiophile. Designed to amplify and fine-tune your audio experience, this equalizer lets you seamlessly navigate through a broad spectrum of frequencies, ensuring every beat and rhythm is heard just as intended. Whether you're looking to elevate the deep notes of a bass or capture the sharp tones of higher pitches, the 7BV has got you covered. It's easy to use, compatible with a range of devices, and is crafted to deliver a flawless audio experience every time. POWER SUPPLY  11-15 DC NEG. GROUND MAX. OUTPUT VOLTAGE 7V RMS PRE GRAPHIC FREQUENCY 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 12KHz EQUALIZATION RANGE +12dB SUBWOOFER FREQUENCY 30Hz-300Hz INPUT IMPEDANCE 15K OHMS S/N RATIO 90 dB THD 0.05% CHANNEL SEPARATION 70dB FREQENCY RESPONSE 10Hz-50KHz(-3dB) Support Specification Sheet (PDF)

Read more less

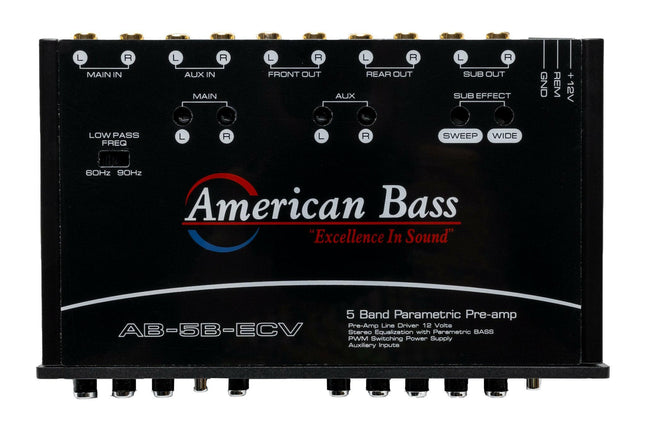

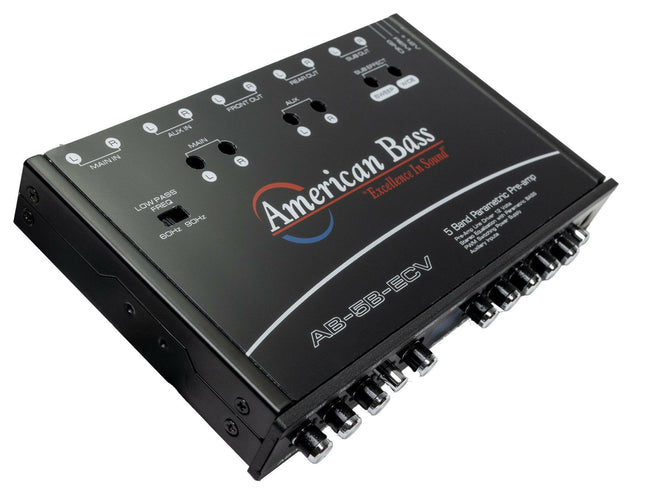

Description Specifications Experience the ultimate audio upgrade with the American Bass AB-5B-ECV Equalizer, a high-performance 5-Band Parametric Pre-amplifier designed to elevate your car audio experience. This versatile equalizer allows you to fine-tune your sound by balancing frequencies, reducing distortion, and enhancing audio clarity, providing a richer and more immersive listening experience. Key features include adjustable input sensitivity, master volume control with up to 8 volts of RMS output, and a stylish night illumination design. Whether you're a casual listener or an audiophile, the AB-5B-ECV Equalizer will help you tailor your car audio system to your preferences, ensuring a consistently enjoyable experience on the road. POWER SUPPLY  11-15 DC NEG. GROUND MAX. OUTPUT VOLTAGE 8V PRE GRAPHIC FREQUENCY 50Hz, 120Hz, 900Hz, 2.2KHz, 16KHz EQUALIZATION RANGE +12dB SUBWOOFER FREQUENCY 10Hz-300Hz INPUT IMPEDANCE 10K OHMS S/N RATIO 90 dB THD 0.05% CHANNEL SEPARATION 82dB/1kHz FREQENCY RESPONSE 10Hz-50KHz(-3dB) Support Specification Sheet (PDF)

Read more less
