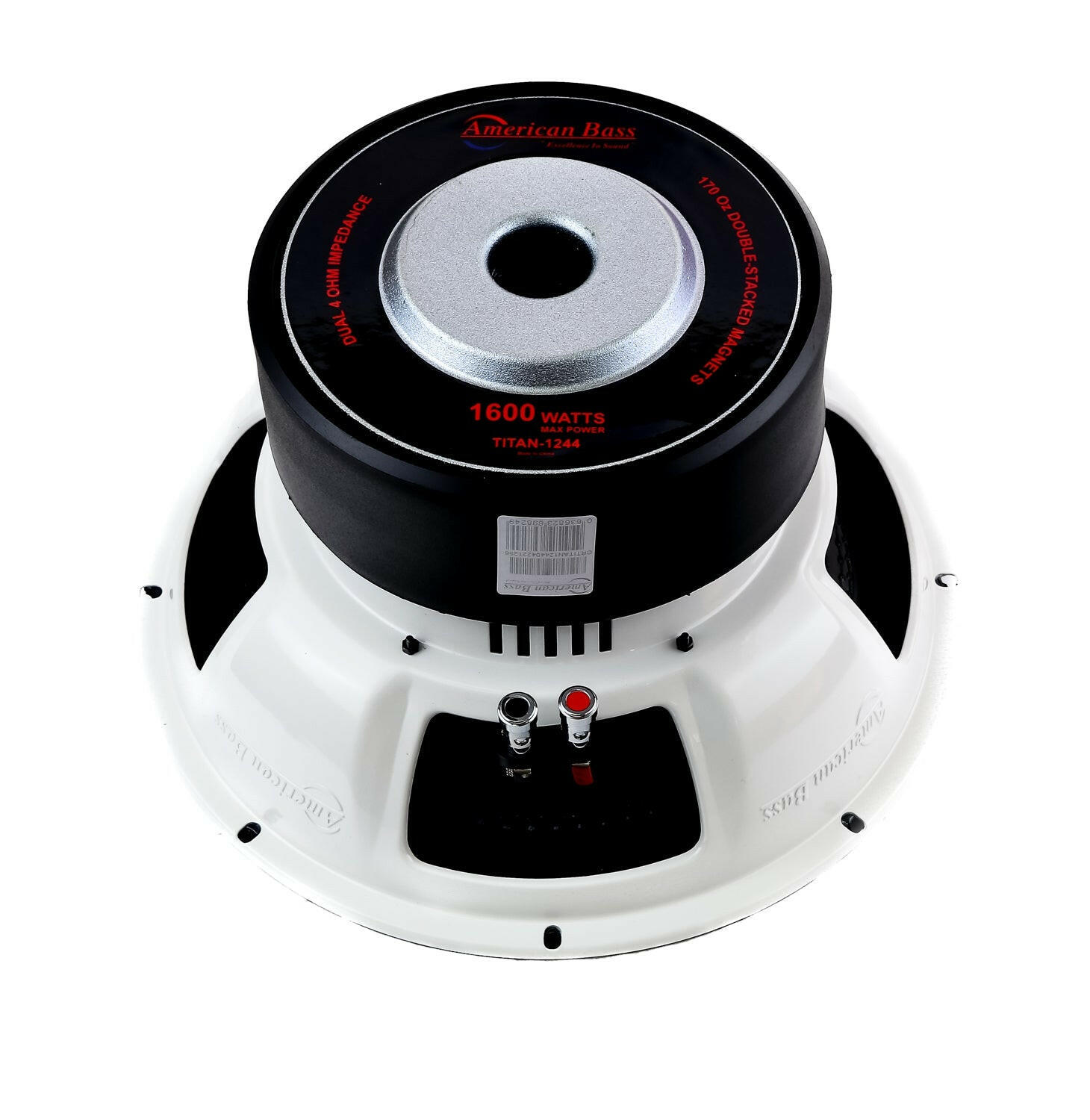

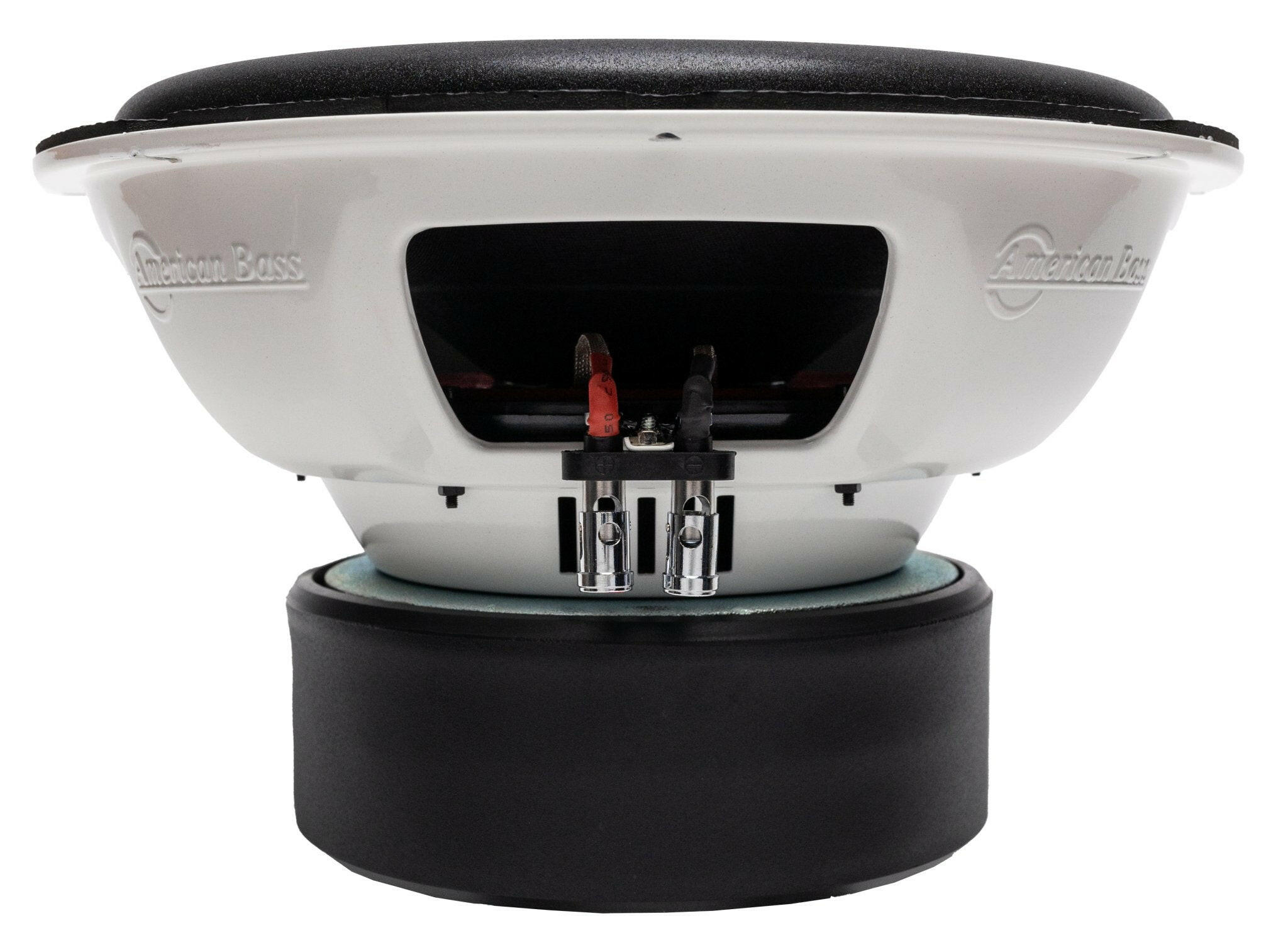

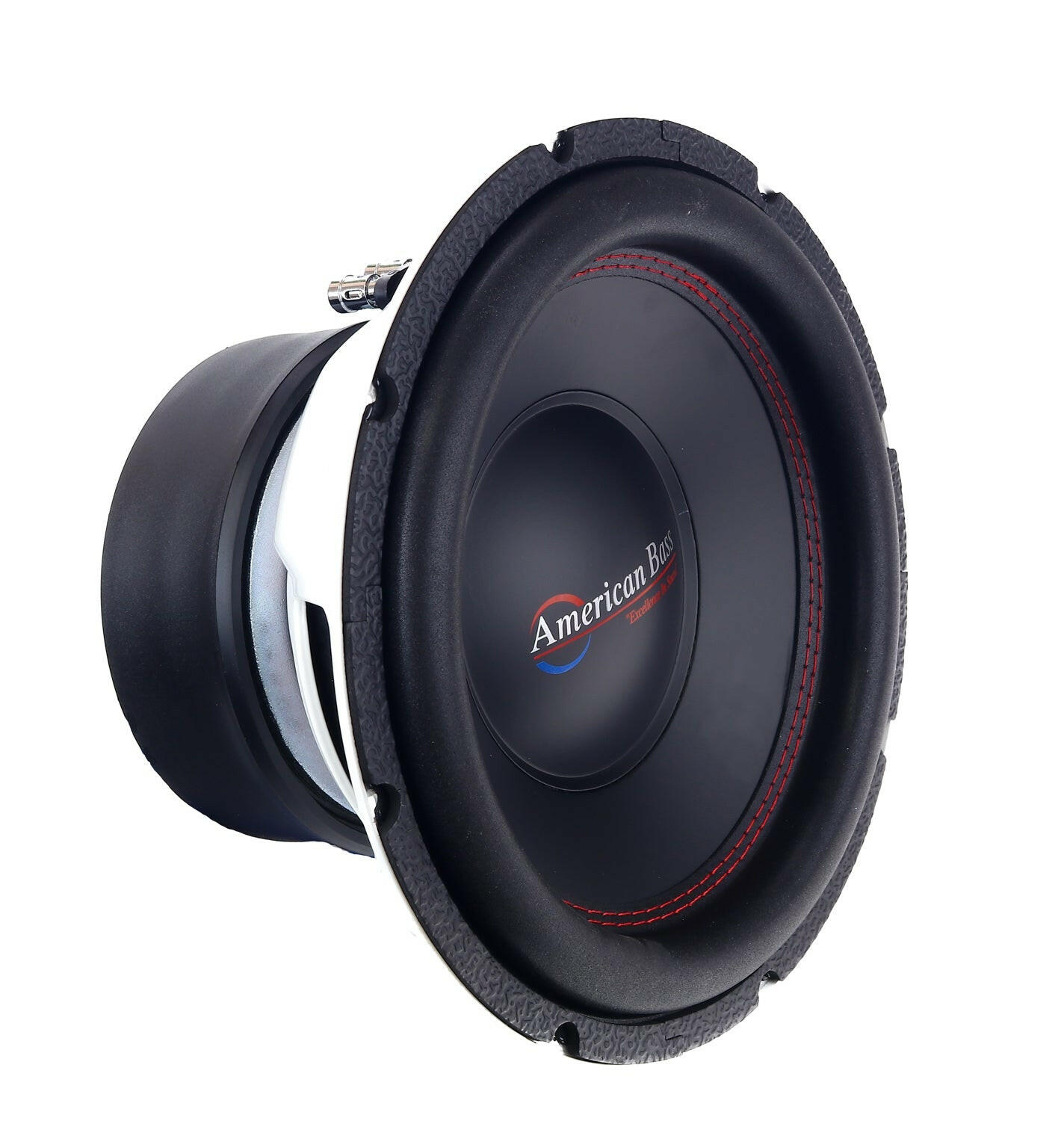

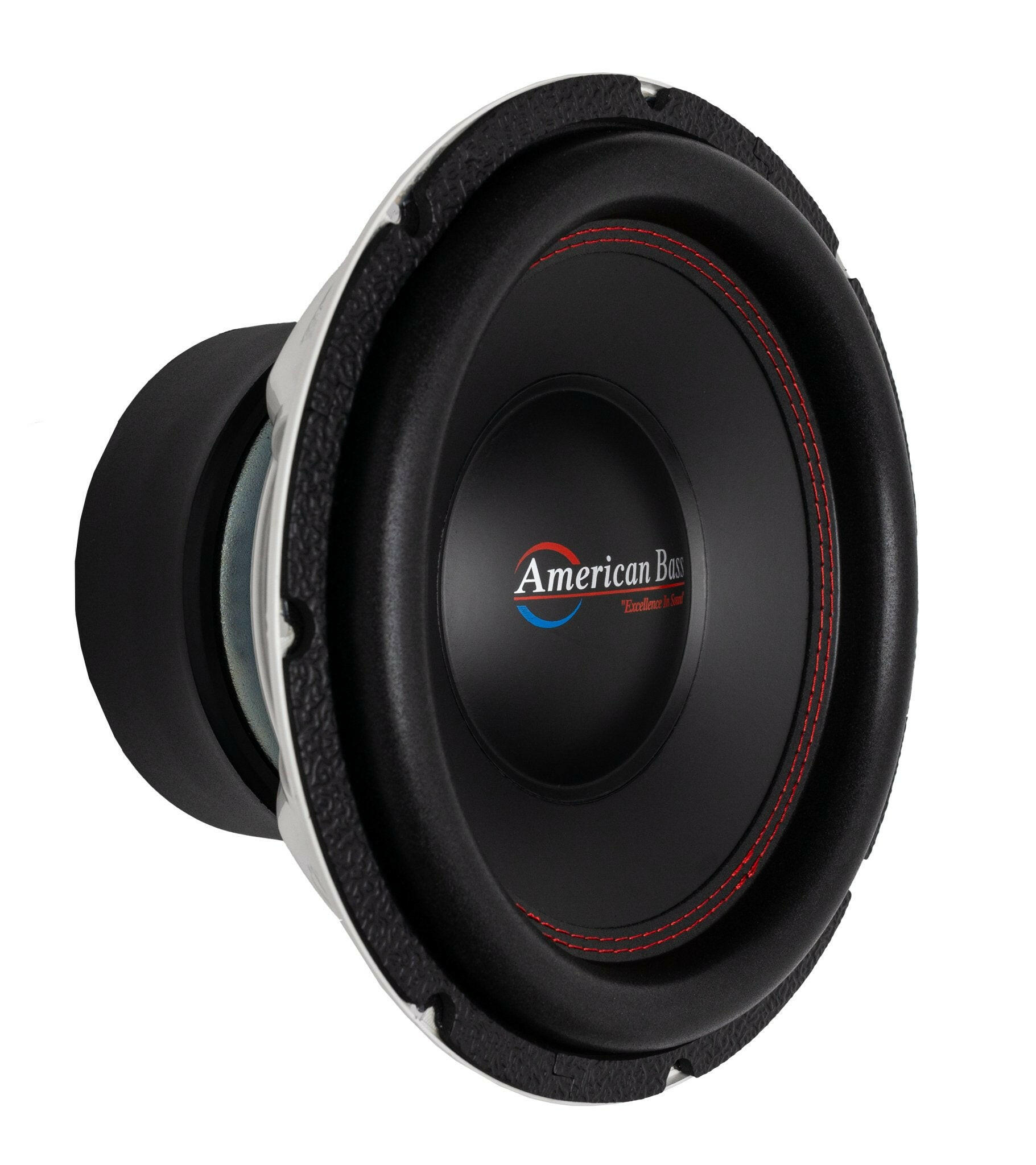

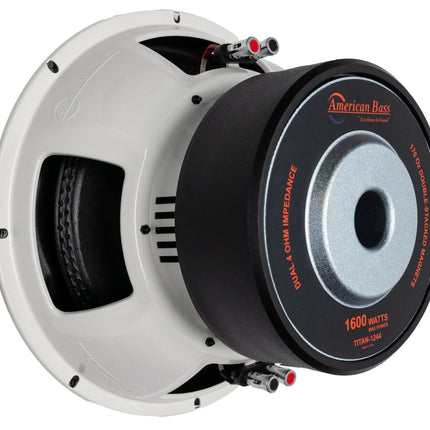

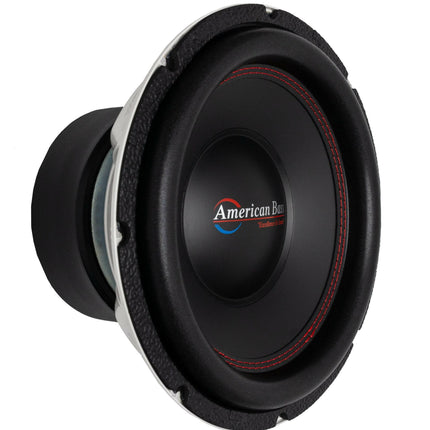

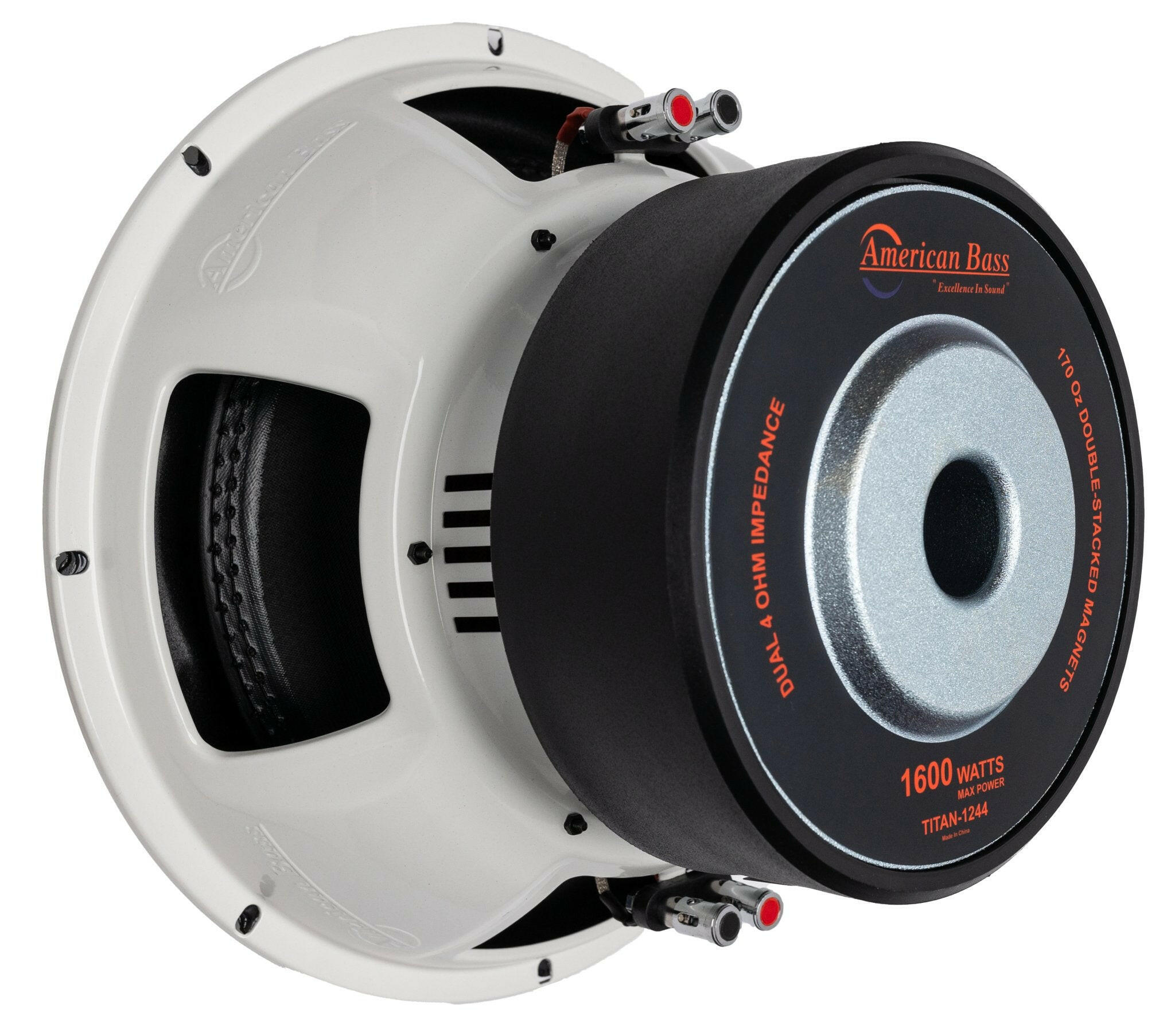

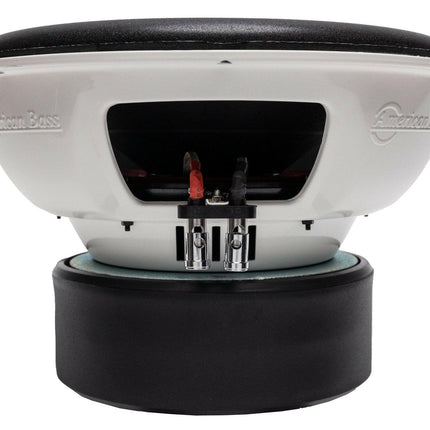

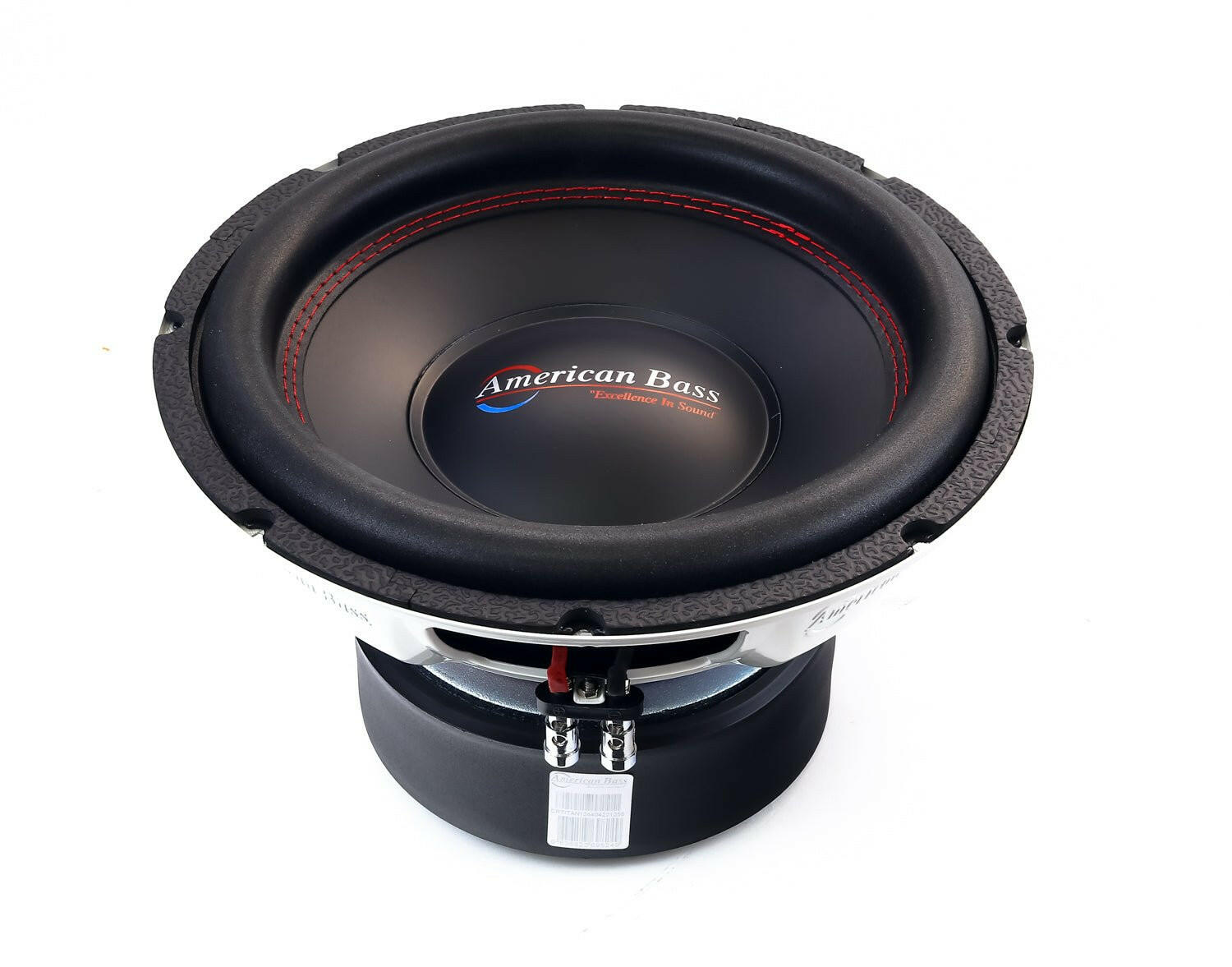

TITAN 12″ Car Subwoofer | 800 Watts RMS | Dual Voice Coil 4 Ohm
TITAN 12″ Car Subwoofer | 800 Watts RMS | Dual Voice Coil 4 Ohm
$262.68 $178.62
Retail $262.68 · You save 32%
Retail $262.68 · You save 32%
Retail $262.68 · You save 32%
Final sale
No returns. No warranty. No exceptions. Before you buy
| Product info | |
|---|---|
| MPN | TITAN-1244 |
| UPC | 631112454582 |
| Brand | American Bass |
| Option | Version 1 / Grade A – Factory Sealed |
| Product info | |
|---|---|
| MPN | TITAN-1244 |
| Brand | American Bass |
| Option | Version 1 / Grade B – Open Box |
| Product info | |
|---|---|
| MPN | TITAN-1244 |
| Brand | American Bass |
| Option | Version 1 / Grade C – Open Box + Minor Damage |
| Condition | |
|---|---|
| Vault SKU | TITAN-1244-A |
| Condition | |
|---|---|
| Vault SKU | TITAN-1244-B |
| Condition | |
|---|---|
| Vault SKU | TITAN-1244-C |
Disclaimer: Vault products may differ from current retail versions in power ratings, specifications, or model revisions. As these items may be older versions or returned products, please review the product details and condition notes carefully before purchasing. Product images may not exactly reflect the item you receive.
| Power & performance | |
|---|---|
| Size (in) | 12 |
| Impedance (Ω) | 4 |
| RMS power (W) | 800 |
| Peak power (W) | 1,600 |
| SPL (dB) | 85.9 |
| Xmax (mm) | 17.5 |
| T/S parameters | |
| Fs (Hz) | 33.19 |
| Qes | 0.72 |
| Qms | 4.68 |
| Qts | 0.62 |
| BL (T·m) | 21.78 |
| Mms (g) | 258 |
| Vas (L) | 31.98 |
| Construction | |
| Voice coil (in) | 3 |
| Voice coil wire | High-temperature 4-ohm, 4-layer voice coil with Nomex protection |
| Cone | Kevlar fiber reinforced, non pressed paper cone |
| Cone material | Kevlar-reinforced paper |
| Surround | 3-layer foam surround |
| Basket | Heavy-duty white powder finish stamped basket with perimeter vents for improved voice-coil cooling |
| Magnet | Double stacked high-energy magnets |
| Magnet weight | 120 Oz |
| Install | |
| Mounting depth (in) | 6.81 |
| Cutout diameter (in) | 11.34 |
| Power & performance | |
|---|---|
| Size (in) | 12 |
| Impedance (Ω) | 4 |
| RMS power (W) | 800 |
| Peak power (W) | 1,600 |
| SPL (dB) | 85.9 |
| Xmax (mm) | 17.5 |
| T/S parameters | |
| Fs (Hz) | 33.19 |
| Qes | 0.72 |
| Qms | 4.68 |
| Qts | 0.62 |
| BL (T·m) | 21.78 |
| Mms (g) | 258 |
| Vas (L) | 31.98 |
| Construction | |
| Voice coil (in) | 3 |
| Voice coil wire | High-temperature 4-ohm, 4-layer voice coil with Nomex protection |
| Cone | Kevlar fiber reinforced, non pressed paper cone |
| Cone material | Kevlar-reinforced paper |
| Surround | 3-layer foam surround |
| Basket | Heavy-duty white powder finish stamped basket with perimeter vents for improved voice-coil cooling |
| Magnet | Double stacked high-energy magnets |
| Magnet weight | 120 Oz |
| Install | |
| Mounting depth (in) | 6.81 |
| Cutout diameter (in) | 11.34 |
| Power & performance | |
|---|---|
| Size (in) | 12 |
| Impedance (Ω) | 4 |
| RMS power (W) | 800 |
| Peak power (W) | 1,600 |
| SPL (dB) | 85.9 |
| Xmax (mm) | 17.5 |
| T/S parameters | |
| Fs (Hz) | 33.19 |
| Qes | 0.72 |
| Qms | 4.68 |
| Qts | 0.62 |
| BL (T·m) | 21.78 |
| Mms (g) | 258 |
| Vas (L) | 31.98 |
| Construction | |
| Voice coil (in) | 3 |
| Voice coil wire | High-temperature 4-ohm, 4-layer voice coil with Nomex protection |
| Cone | Kevlar fiber reinforced, non pressed paper cone |
| Cone material | Kevlar-reinforced paper |
| Surround | 3-layer foam surround |
| Basket | Heavy-duty white powder finish stamped basket with perimeter vents for improved voice-coil cooling |
| Magnet | Double stacked high-energy magnets |
| Magnet weight | 120 Oz |
| Install | |
| Mounting depth (in) | 6.81 |
| Cutout diameter (in) | 11.34 |
| Support | |
|---|---|
| Spec sheet | Download PDF |
| hello@americanbassusa.com | |
| Phone | 440-409-7932 |
| Fit questions | Ask before you buy. All sales are final. |
| Arrived damaged? | Report within 7 days |
| Support | |
|---|---|
| Spec sheet | Download PDF |
| hello@americanbassusa.com | |
| Phone | 440-409-7932 |
| Fit questions | Ask before you buy. All sales are final. |
| Arrived damaged? | Report within 7 days |
| Support | |
|---|---|
| Spec sheet | Download PDF |
| hello@americanbassusa.com | |
| Phone | 440-409-7932 |
| Fit questions | Ask before you buy. All sales are final. |
| Arrived damaged? | Report within 7 days |
- Ships in 3–4 business days
- Inspected and tested before listing
